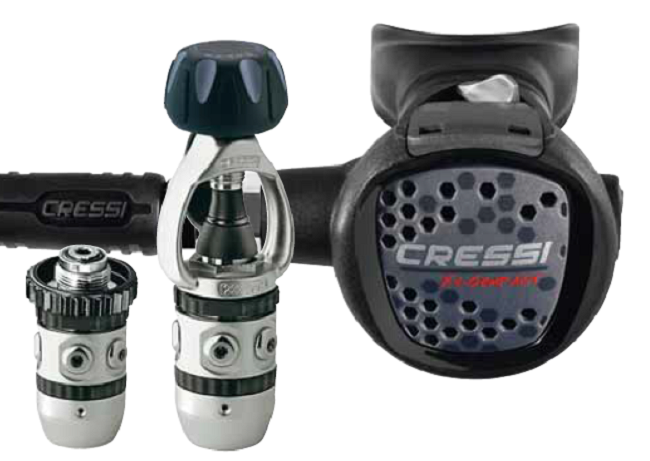

AC2 / Compact Regülatör

TECHNICAL FEATURES 1ST STAGE
- Piston design
- 1 7/16” HP ports UNF
- 4 3/8” LP ports UNF
- Operating pressure:
INT version: 230 bar | 3,336 psi
- Calibration pressure:
9.8÷10 bar | 142÷146 psi
- Brass body Electroless Nickel plated
- High capacity conical fi lter
electroless nickel plated
- Long lasting piston: AISI 316 stainless steel
- Extremely easy in maintenance since IP
is adjustable from the outside
- Stainless steel spring
- Flow rate: 74.16 cu ft/min (2,100 l/min)
- Yoke version weight: 22.4 oz / 635 g


TECHNICAL FEATURES 2ND STAGE
- Downstream system
- Adjustable Venturi effect
- Easy maintenance
- Weight without hose:
7.27 oz - 206 g
- Adjustable intermediate
pressure from the out side of the
regulator due to our patented
ACs design
